Description
Product Advantage

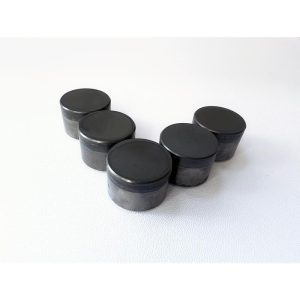

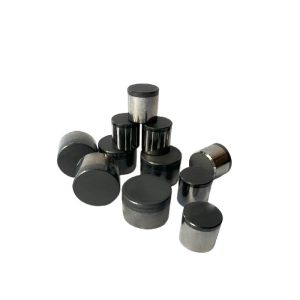

The new product reforms are based on the flat cutter. Good performance and long lifetime, reliable for hard rock formations, low damage rate, cost-effective.
Product Application

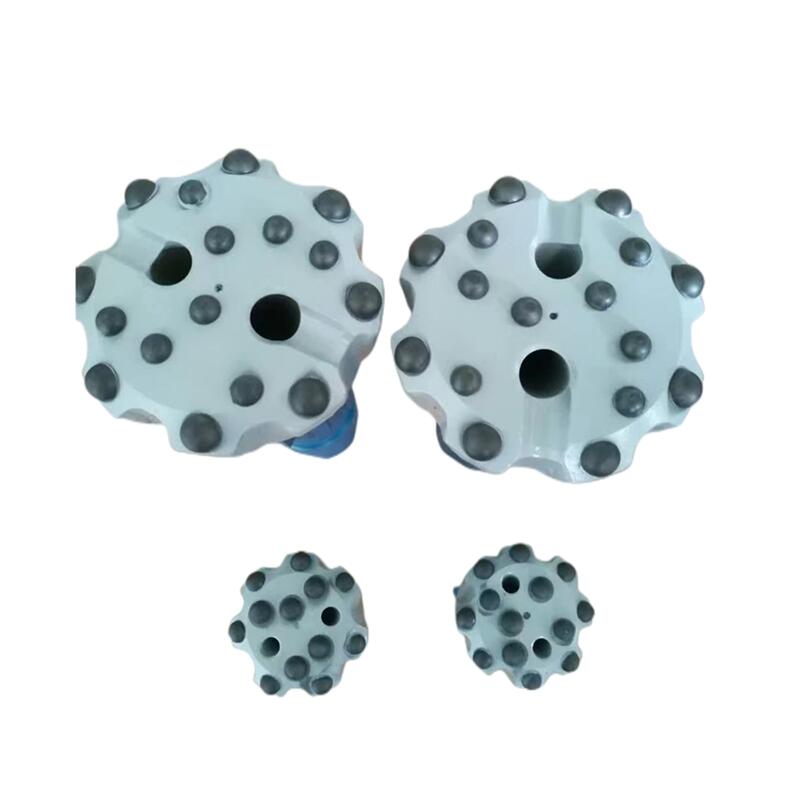

The products are widely used in geological explorations, coal mining, road subgrade drilling, underground tunnel and Burnley tunnel excavation, bridge excavation, and other complex formations in the infrastructure fields.
Product Characteristic
High impact resistance, high wear resistance, and good thermal productivity.

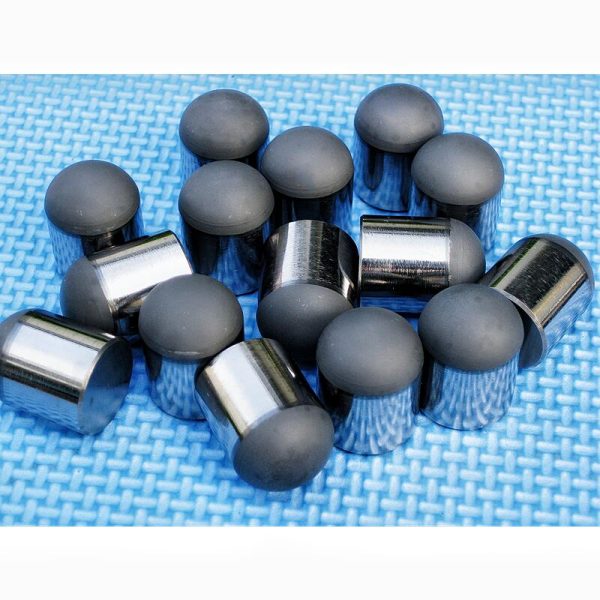

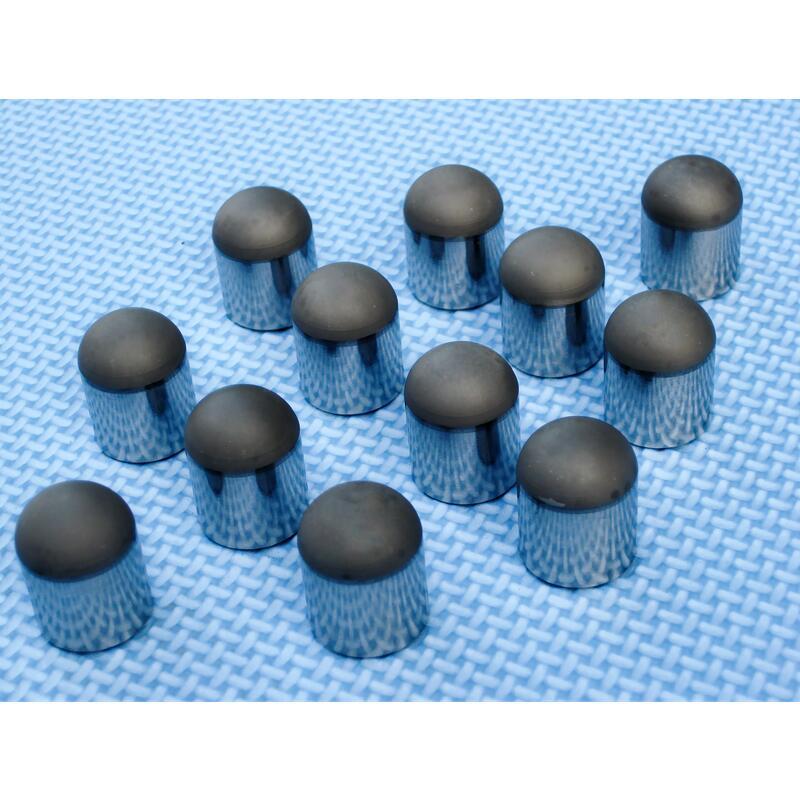

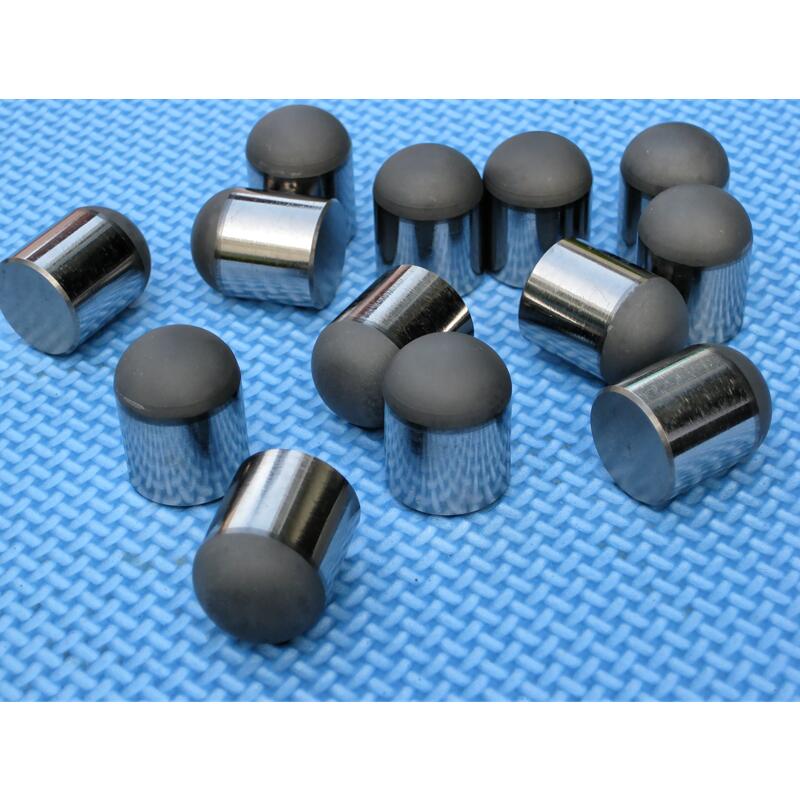

The special-shaped PDC Cutter performs well during the drilling, mining, and digging process with a low damage rate due to the high impact toughness and abrasion resistance.
Product Size
| Item | Diameter(mm) | Height(mm) | Semidiameter(mm) | Height(mm) |
| 1217（sphere） | 12.8 | 17 | 4.2 | 6.4 |
| 1418（sphere） | 14.10 | 18 | 7.15 | 7.05 |
| 1622（sphere） | 16.7 | 22 | 6.8 | 8.35 |
| 1825（sphere） | 18.07 | 25 | 9.5 | 9 |
| 2225（sphere） | 22 | 25 | 2.7 | 14.2 |
